IN-C006-1 Cheap medical ecg icu monitor price handheld patient monitoring equipment for hospital ICU

FOB Reference Price:Get Latest Price
$300.00 - $600.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ICEN
Model Number:
IN-C006-1
Type:
Blood Pressure Monitor
Product name:
Cheap medical ecg monitor for fospital ICU
Application:
Medical Field
Certificate:
CE ISO
Waranty:
12 mouths
Display:
15" high resolution color TFT LCD display
Respiration:
RA-LL impedance Respiration
Capacity:
Networking capacity
ECG Lead Mode:
5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V)
Resp. Rate Measuring:
Adult: 0 ~ 120 rpm Neo/Ped: 0 ~ 150 rpm
keyword:
cheap medical patient monitor
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
carton/wooden package for cheap medical patient monitor
Port
GuangZhou
Lead Time :
5-7 days after total payment

IN-C006-1

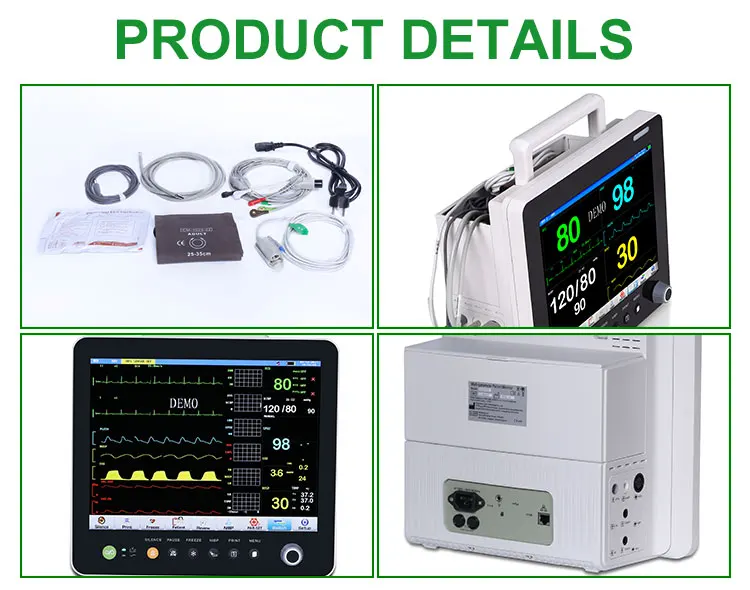

Product Description

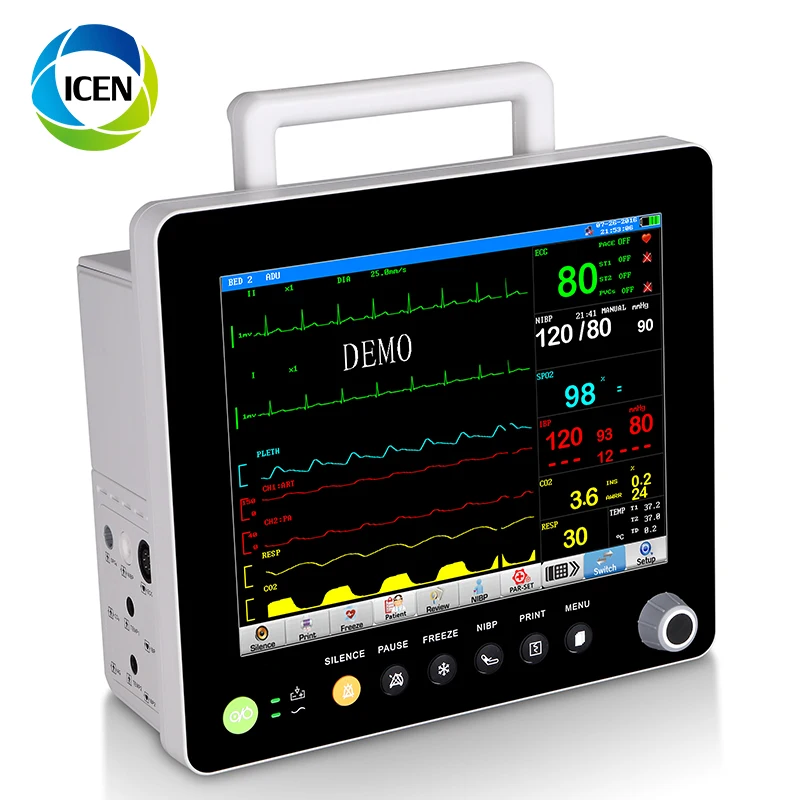

 Cheap medical ecg monitor handheld patient monitoring equipment for hospital ICU



IN-C006-1

IN-C006-1

IN-C006-15





Features:



1.13 Type Arrhythmic Analysis, Multi_Lead ECG Waveforms Display in Phase, Real time S_T segment analysis, pacemaker detection Drug calculation and titratiotable;

2. Efficient resistance to interference of defibrillator and electrosurgical cautery;

3. SPO2 can testing for 0.1% Weak;

4. RA-LL impedance Respiration;

7. Bed to Bed view Display;

8. Networking capacity ;

9. UP to 4 hours working capacity of built_in rechargeable battery;

10.15" high resolution color TFT LCD display;

11. Large volume of tabular and graphic trends information storage and easy to recall;

12. Anti-ESU, anti- defibrillator;



 Specifications:

ECG

Lead Mode: 5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V)

Lead selection: I, II, III, avR, avL, avF, V,

Waveform: 2 ch

Lead mode: 3 Leads ( R, L, F or RA, LA, LL)

Lead selection: I, II, III,

Waveform: 1 ch

Gain: ′2.5mm/mV, ′5.0mm/mV, ′10mm/mV, ′20mm/mV, auto

HR and Alarm

Range

Adult: 15 ~ 300 bpm

Neo/Ped: 15 ~ 350 bpm

Accuracy : ± 1% or ± 1bpm,which great

Resolution: 1 bpm

Sensitivity: > 200 (uV P-P)

Differential Input Impedance: > 5 MΩ

CMRR

Monitor: > 105 dB

Operation: > 105 dB

Diagnosis: > 85 dB

Electrode offset potential: ±300mV

Leakage Current: < 10 uA

Baseline Recovery: < 3 S After Defi.

ECG Signal Range: ±8 m V ( Vp-p )

Bandwidth

Surgery: 1 ~ 15 Hz

Monitor: 0.5 ~ 35 Hz

Diagnostic: 0.05 ~ 100 Hz

Calibration Signal: 1 (mV p-p), Accuracy:±5%

ST Segment Monitoring Range: Measure and Alarm -2.0 ~ +2.0 mV

ARR Detecting

Type: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC,

TACHY, BRADY, MISSED BEATS, PNP, PNC

Alarm: Available

Review: Available



RESPARATION

Method: Impedance between R-F(RA-LL)

Differential Input Impedance: >2.5 MΩ

Measuring Impedance Range: 0.3~5.0Ω

Base line Impedance Range: 0 – 2.5 KΩ

Bandwidth: 0.3 ~ 2.5 Hz

Resp. Rate

Measuring and Alarm Range

Adult: 0 ~ 120 rpm

Neo/Ped: 0 ~ 150 rpm

Resolution: 1 rpm

Accuracy : ±2 rpm

Apean Alarm: 10 ~ 40 S



NIBP

Method: Oscillometric

Mode: Manual, Auto, STAT

Measuring Interval in AUTO Mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min)

Measuring Period in STAT Mode: 5 Min

Pulse Rate Range: 40 ~ 240 bpm

Alarm Type: SYS, DIA, MEAN

Measuring and alarm range

Adult Mode

SYS: 40 ~ 270 mmHg

DIA: 10 ~ 215 mmHg

MEAN: 20 ~ 235 mmHg

Pediatric Mode

SYS: 40 ~ 200 mmHg

DIA: 10 ~ 150 mmHg

MEAN:20 ~ 165 mmHg

Neonatal Mode

SYS: 40 ~ 135 mmHg

DIA:10 ~ 100 mmHg

MEAN:20 ~ 110 mmHg

Resolution Pressure:1mmHg

Accuracy Pressure Maximum Mean error: ±5mmHg

Maximum Standard deviation: ±8mmHg

Overpressure Protection

Adult Mode: 297±3 mmHg

Pediatric Mode: 240±3 mmHg

Neonatal Mode: 147±3 mmHg
