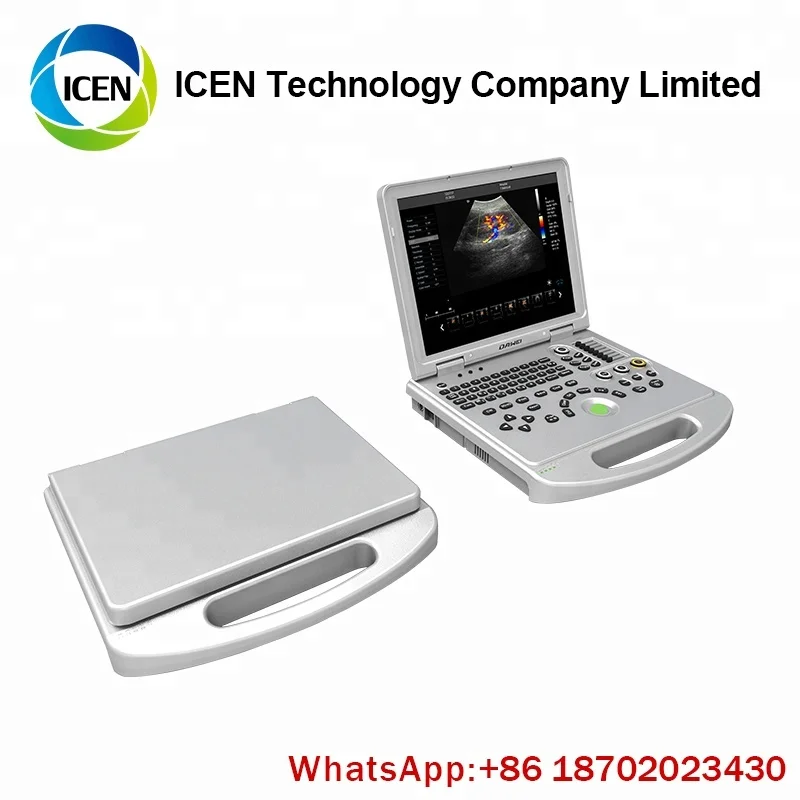

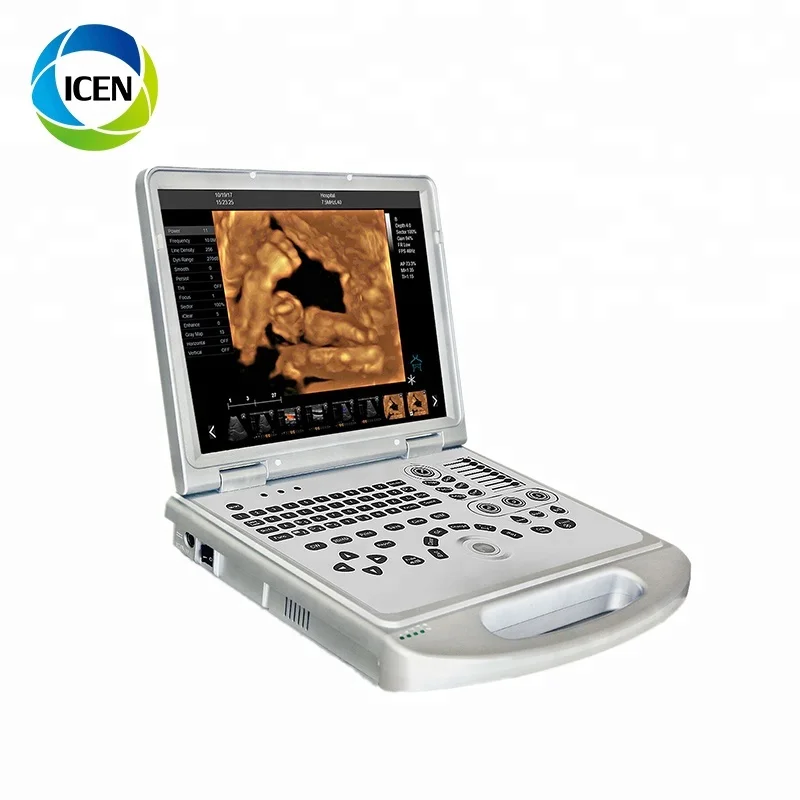

IN-AC60PLUS 3D 4D Portable Notebook/Laptop Doppler Echo Ultrasound Scanner Machine 3D color doppler

FOB Reference Price:Get Latest Price
$1,000.00 - $5,000.00 / Set | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ICEN
Model Number:
IN-AC60PLUS
Type:
Doppler Ultrasound Equipment
Instrument classification:
Class I
Dynamic range:
0-270dB
Name:
Laptop Color Doppler
Product name:
Medical Ultrasound Equipment
Display:
15 Inch LED Medical Display
Application:
Abdomen
Certificate:
CE ISO
Warranty:
1 Year
Packing size:
60*50*27cm
Gross weight:
15kg
keyword:
Portable Ultrasound Baby Scanner
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
carton ,wooden package for Portable Ultrasound Baby Scanner
Port
guangzhou port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 To be negotiated

 IN-AC60PLUS 3D 4D 5D Portable Notebook/Laptop Dopler Echo Wed Ultrasound Baby Scaner Machine

Portable Ultrasound Baby Scanner

Product Description

Windows 7 embedded operating platform, solid-state hard drive data storage,safe and reliable and boot quickly

Adopt the international standard lithium battery: 18650mAH

Backup time ≥ 3H.  Battery capacity 173wh.

Portable Ultrasound Baby Scanner



Display

15 inch LED medical display

Probe connector

Single 1

Operation interface

English (more languages as option)

Display mode

B,B+B,4B,B+M,M,C,PW,CW,4D,B/C,B/C/PW,B/PW

Focus

4 segments

Body mark

≥57

Image processing

Up/Down, Left/Right, Angular variation, Reverse

Measurement

Distance, circumference, area, volume, heart rate, diameter stenosis rate, area stenosis rate, angle, rhythm, speed.

Application

Abdomen,cardiac,skeletal muscle, early obstetrics, middle and late obstetrics, pelvic (uterine attachment) , small parts, urology, peripheral blood vessels, GW&EDD, fetal weight.

Character display

Date, time, name, sex, age, doctor, hospital, annotation (full screen character editing)

Cine loop

≥ 1200 frames, continuous playback or view one by one.

Storage

Probe parameter, cine loop, measuring result, report can be saved and transferred to external storage device

Gray scale

256 levels

Puncture guide

Available

Gravel positioning

Available

Dynamic range

0-270dB

TGC control

8 segments

Pre-processing

Variable aperture, dynamic apodization, dynamic digital filtering, multi-beam parallel processing technology, THI and so on.

Post-processing

Dynamic range 0-270DB, black and white afterglow 0-7, smoothing 0-7, gray curve 1-16, frame correlation, SHI, sound power, wall filter, cumulative number, baseline adjustment, sampling frame adjustment , spectral sampling volume, spectral sampling volume angle, the PRF (pulse repetition frequency) and so on.

Blind zone

≤4mm

Max display depth

320mm

Geometric accuracy

horizontal ≤ 5%, vertical ≤ 5%

Resolution

lateral ≤ 2mm, axial ≤ 1mm

External interface

HDMI, USB, DICOM 3.0

Display magnification

16 kinds

Frame rate

5-1016fps

Scanning range

5% - 100%

Gain adjustment

Overall gain: 0 ~ 100%, PW gain: 0-15, CFM gain: 0-15

Image optimization

6 level adjustable

Smoothing

8 level adjustable

Edge enhancement

8 level adjustable

PRF

16 level adjustable

Gray scale curve

16 level adjustable

Acoustical power

15 level adjustable

Weight

NW: 6.3kg         GW: 15kg

Packing size

60*50*27cm



Probe frequency range:

3.5MHZ convex probe: 2.0, 3.0, 3.5, 4.0, 5.5Mhz

6.5MHZ trans-vaginal Probe: 5.0, 6.0, 6.5, 7.5, 9.0Mhz

3.0MHZ Phased array probe: 2.0, 3.0, 3.5, 4.0, 5.0Mhz

7.5MHZ High frequency Linear Probe: 6.0, 6.5, 7.5, 10.0, 12.0Mhz

6.5Mhz micro-convex probe(R11/R15/R20):2, 3, 3.5, 4, 5.5, 6.5, 7.5, 10Mhz

Volume probe: 2.0, 3.0, 3.5, 4.0, 5.5MhzAC60PLUS2AC60PLUS3AC60PLUS)2
