Apparatus Introduction Intelligent product used in modern reproductive medicine with the combination of computer image processing technology and advanced artificial intelligence technology. It can be used for automatic identification of sperm and automatic tracking of sperm movement fast, finish the analysis for a number of parameters in conformity with the WHO international standards and take comprehensive quantitative analysis of sperm activity and static characteristics. It is suitable for clinical semen test, providing an important scientific basis for male fertility.
Apparatus Features 1) Can filter out all kinds of impurities which are different from sperm to ensure the test accuracy. 2) Scatheless test can ensure the sperm’s natural motion state and monolayer sampling. 3) All the data and dynamic and static images of sperm examination for patients are digitally stored. It can used for variedly querying, modifying, adding up, and printing inspection reports, and also be shared to within the networking freely. 4) Advanced morphological analysis software, clearly and intuitively colorful picture.
Examination Items 1) Sperms density, survival rate of the sperms, the movement locus of sperms, and distribution curve of sperms movement 2) Average speed, total number of the sperms, total numbers of motile sperms, survival rate of the sperms in the curvilinear motion of the sperms 3) Average speed, total number of the sperms, total numbers of motile sperms, survival rate of the sperms in the rectilinear motion of the sperms 4) Average speed, total number of the sperms, total numbers of motile sperms, survival rate of the sperms in the average path motion of the sperms 5) Graded speed of sperms motion: the survival rate of A rapid motion forward, B slow motion forward, C non travel forward, D hyperslow or motionless of the sperms 6) The side-way amplitude of sperms, sperms wing, whipping frequency of sperms, the rate of rectilinear motion, total number 7) Linear speed, average speed of motion, the sperms’ number of linear motion
Technical Parameters 1) Maximum of the tested sperms: 1000 2) Range of test speed: 0-180um/s 3) Frame number of picture: 0-75 4) Resolution of particle diameter: 0-150µm/s 5) Analysis time: 1-5 seconds or longer 6) Group number of collected images: 1-15 groups 7) Microscope objective lens: 10x.20x.25x.40x 8) Displayed content of sperm test system is no less than: 1) distribution curve of static sperms, 2) the features data of semen and statistical data from analysis of all the main functions, 3) sperm dynamic trajectory curve, 4) display various sperms motion speed and energy is arrhythmic map of sperms, 5) case information for management such as patients’ name; 9) Output content from sperms test system is no less than: 1) the main technical data of sperms, 2) sperm dynamic trajectory curve, 3) analysis and determinant histogram 4) case information for management such as patients’ name

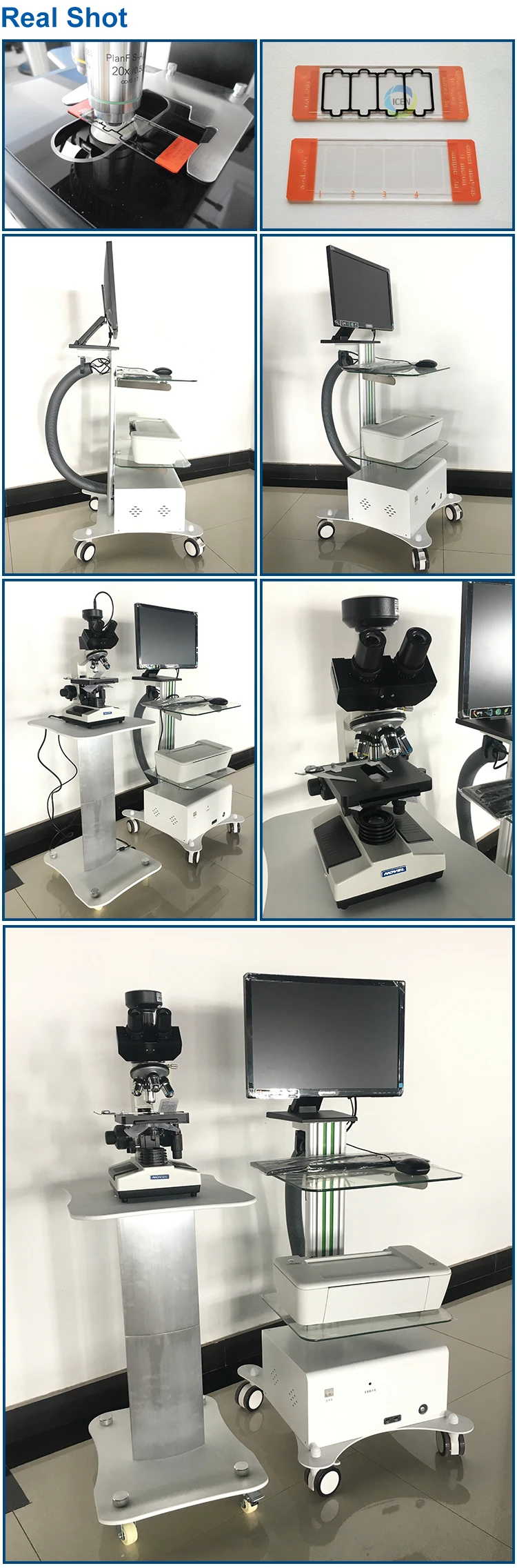

Standard Configuration Main Unit,Computer,LCD Monitor,Printer,Microscope,English Analyzer software
Our company is a leading exporter and supply chain service provider of medical machine with more than 8 years' experience. Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables. We have exported products to more than 50 countries and built long term partnerships with clients. Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.
Top Quality: We have strict quality control system and enjoy good reputation in the market.
Excellent Service: We treat clients as friend and aim at building long term business relatiionship.
OEM Accepted :We Can print your own logo on the products.
Unbeatable Price: We always ensure high price performance to benefit our customers.
Timely Delivery:Your order shall be shipped once finished .
After-Sale Service:All Products Have One Year Warranty.
Packaging & Shipping
1. We ship the Sperm Analyzerby air or sea for you.
2. Our Sperm Analyzerwith standard export packing.
3. No matter what delivery way , all depending on your actual requirements.
How to buy your products ?Do you have distributor in our country?
You can buy the products from our company directly.Normally the procedure is:Sign the contact ,payment byT/T, contact the shipping company to delivery the goods to your country.
What is the warranty?
The free warranty is one year from the day of Commissioning qualified.
Can we visit your country ?
Of course,we willprepare for everything in advance if it is necessary .Generally,it is require that customers must have build agency relationship or business relationship with our company.
How long is the validity of quotation?
Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .
Do you have the CE certificate ?
Yes, most of our products have the CE certificate.
