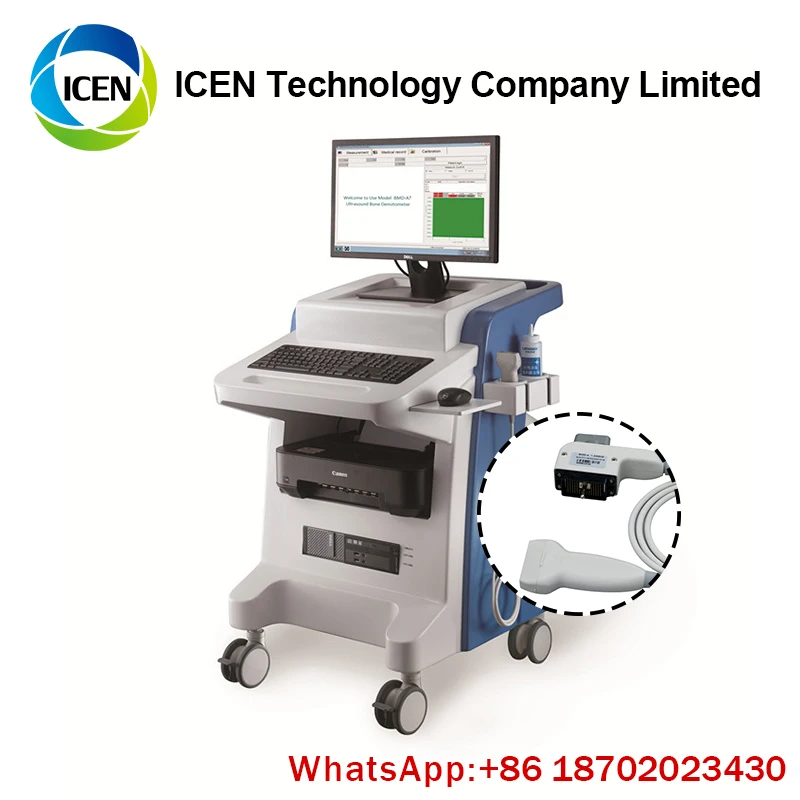

IN-BA7 Portable BMD Machine Ultrasonic Diagnostic Ultrasound Bone Densitometer

FOB Reference Price:Get Latest Price
$100.00 - $5,000.00 / Sets | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ICEN
Model Number:
IN-BA7
Input power:
≤200VA
Measurement Accuracy:
≤0.1%
Measurement Reproducibility:
≤0.1%
Repot mode:
Color
Monitor:
Dell 21.5 inch Color LED Mornitor
Certificate:
CE ISO
Warranty:
1 Year
G.W:
12 Kgs
Size:
85cm*71cm*104cm
Keyword:
Densitometer
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
carton ,wooden package for Densitometer
Port
guangzhou port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 To be negotiated

IN-BA7  Portable  BMD Machine Ultrasonic Diagnostic Ultrasound Bone Densitometer

Product Description



Performance parameter:

1. Measurement parts: 1/3 of radius and middle of the Tibia

2.  Measurement  mode: double emission and double receiving

3. Measurement parameters:  Speed of sound (SOS)

4. Analysis Data: T- Score, Z-Score, Age percent[%], Adult percent[%], BQI (Bone quality Index ), PAB[Year]  (physiological age of bone), EOA[Year] (Expected Osteoporosis age), RRF(Relative Fracture Risk).

5. Measurement  Accuracy : ≤0.1%

6. Measurement Reproducibility:  ≤0.1%

7. Measurement  time: one period <10 seconds

8. Probe frequency : 1.20MHz, United States DuPont technology.

9. Date analysis :  BMD-A7 special intelligent real –time data analysis system, it selects the adult or child databases according to the age automatically .

10.  Temperature control: Perspex sample with temperature instructions

11.  Probe measurement navigation:  this equipment display the Axial angle ,  the Horizontal Angle , the Direction Angle between the probe and the bone plane, it display the change of the real-time angle data.  It is easy to correct the measure angle quickly, improving the measure speed , improving the data Accuracy.

12.  Probe crystal indication: it display the working condition for the four crystal of the probe, and the signal strength for the ultrasonic reception.

13. Daily Calibration:  automatic calibrating after power on.

14. All the people of the world. It measuring the people between the age Of 0 and 100,(Children: 0-12 years old, Teenagers: 12-20 years old, Adults:20-80 years old, The Elderly 80-100 yeas old,  only need to input the age and recognizing automatically .

15. Temperature display calibration block:  the calibration with pure copper and Perspex,  the calibrator display current temperature and standard SOS. The equipment leave the factory with Perspex sample.

16. repot mode: color

17.  Report format: supply A4, 16K ,B5 and more size report

18. Main Unit: the original Dell Rack business Computer. Signal processing and analysis are fast and accurate.

19. Main Unit configuration:  CPU: i5, dual core, 4G memory, 500G hard disk, original Dell recorder., wireless mouse.

20.  Monitor: Original Dell  22’HD color LED Monitor.

21.  Trolley

22. Bone densitometer probe connector: multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.

23. Luxury trolley mould design and manufacturer, beautiful and easy to use

24. Fluid Protection: main unit waterproof level IPX0, probe waterproof level IPX7

25. Bone densitometer probe connector: multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.

26. Connect to the internet and provide remote services.

27. Environmental test : fix GB/T14710-2009 requirement

28. EMC test: fix YY0505-2012 requirement

29. Safety test: fix GB9706.1-2007,GB9706.9-2008,GB9706.15-200 requirement.

30. Industry standard: fix YY077-2010 requirement.

31. Power and voltage: AC220V±10%,50Hz±1Hz

32.  Input power:≤200VA



Configuration:

1. Ultrasound Bone Densitometer Trolley Main unit (Inner Dell Business Computer with i5 CPU)

2. 1.20MHz Probe

3.MS-A7U Intelligent Analysis System

4.Canon Color InkJet Printer G1800

5. Dell 21.5 inch Color LED Mornitor

6. Calibrating Module( Perspex sample)  7.Disinfectant Coupling Agent




Company Information

Our company is a leading exporter and supply chain service provider of medical machine with more than 8 years' experience.
Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables. We have exported products to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.



Our Services
  • Top Quality: We have strict quality control system and enjoy good reputation in the market.
  • Excellent Service: We treat clients as friend and aim at building long term business relatiionship.
  • OEM Accepted : We Can print your own logo on the products.
  • Unbeatable Price: We always ensure high price performance to benefit our customers.
  • Timely Delivery: Your order shall be shipped once finished .
  • After-Sale Service:All Products Have One Year Warranty.
Packaging & Shipping

1. We ship the Densitometer by air or sea for you.

2. Our Densitometer with standard export packing.

3. No matter what delivery way , all depending on your actual requirements.
