Standard Number of channels: 12 channels; Sampling rate:10000Hz; Sampling accuracy:12bit; Recording time : 24 h; Power: 2 batteries in size 5; Interface: USB2.0; Scale voltage:1mV±5%; Standard Sensitivity:10mm/mV±5%; Noise level:≤30μV; CMRR:≥60dB; Feathers of low frequency : Time constant>3.2s; Scan speed:25mm/s±5%; Enduring polarization voltage:±300mV; Least measure signal : 50 µV p-p; Product safety type : Type B (Internally powered); Size:111mm(L)*60mm(W)*25mm(H);

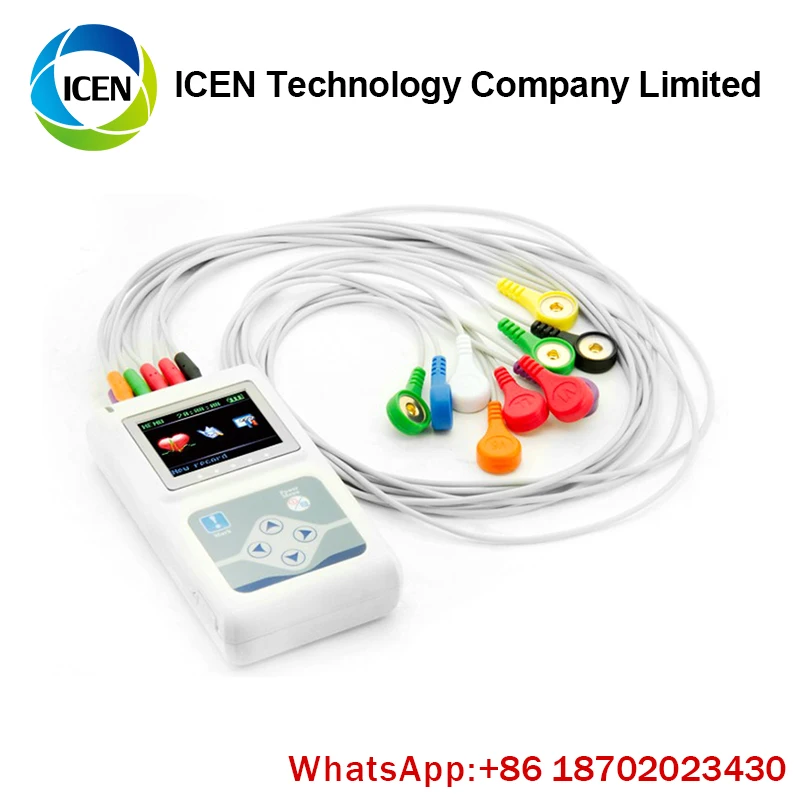

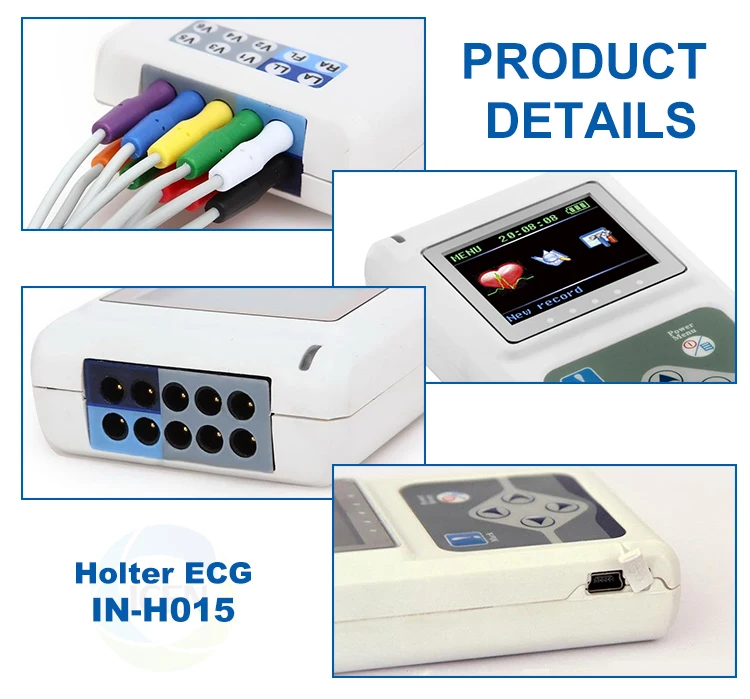

Recorder Features 1.The recorder can work stably, dependable and durable. 2.Be provided with the capability of anti-jamming and shock-pro. 3.Small volume with OLED screen. The resolution is 160*128. 4.Be provided with functions of waveform preview, record review and event marking. 5.Accurate record of the start time of the data sampled owing to the real time clock of itself. 6.Avoid damage owing to the repeating inserting and pulling out by using the inbuilt TF card to storage the data. 7.The maximum capability can be 2GB. 8.The average review time of single case can be less than 40 seconds by using interface of USB 2.0. 9.Record waveform details inextenso by the design of high precision and sampling frequency. 10.Record the state of pacemaker exactly by higher sampling frequency. 11.Record 24-hour DECG with the same standard of the ECG.
The features of software 1.Quick and accurate analysis system. 2.With 12 leads synchro analysis , QRS search can be more exactly. 3.There are more than 10 templates as atrial premature beat module, ventricular premature beat module, long interval module, atrial flutter module, atrial fibrillation module etc. and multiplicate User-defined templates could almost identify every kind of pathologic waveforms. 4.Optional main channel. 5.Agile and exact "Atrial Fibrillation" analysis. 6.The function of pacing analysis could analyse all pacemakers. 7.Many pacine modules have been added. 8.Any period of single lead or 12-leads ECG can be reviewed at any time with the function of fast waveform review and analysis. 9.The types of the analysis system of HR variability include five minutes of short ECG and one hour or 24-hour of long ECG. 10.Print report expediently. 11.Perfect function of case management. 12.With the function of ST segment analysis and general load of the disorder of the heart muscle, the physician can judge a disease or disorder of the heart muscle generally. 13."Sleep breath pause syndrome analysis", the physician could print sleep asphyxia analysis report and diagnose. 14."HRT" analysis, when the adjustable function is natural, this transitory change will be represented by the form of HRT immediately. 15."T Wave alternation" analysis is a important index on judging and preventing Arrhythmia . 16.The report has more reference value with the functions of VCG, VLP, TVCG and QTD analysis.
Our company is a leading exporter and supply chain service provider of medical machine with more than 8 years' experience. Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables. We have exported products to more than 50 countries and built long term partnerships with clients. Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.
Top Quality: We have strict quality control system and enjoy good reputation in the market.
Excellent Service: We treat clients as friend and aim at building long term business relatiionship.
OEM Accepted :We Can print your own logo on the products.
Unbeatable Price: We always ensure high price performance to benefit our customers.
Timely Delivery:Your order shall be shipped once finished .
After-Sale Service:All Products Have One Year Warranty.
Packaging & Shipping
1. We ship the bluetooth ecg holterby air or sea for you.
2. Our bluetooth ecg holterwith standard export packing.
3. No matter what delivery way , all depending on your actual requirements.
How to buy your products ?Do you have distributor in our country?
You can buy the products from our company directly.Normally the procedure is:Sign the contact ,payment byT/T, contact the shipping company to delivery the goods to your country.
What is the warranty?
The free warranty is one year from the day of Commissioning qualified.
Can we visit your country ?
Of course,we willprepare for everything in advance if it is necessary .Generally,it is require that customers must have build agency relationship or business relationship with our company.
How long is the validity of quotation?
Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .
Do you have the CE certificate ?
Yes, most of our products have the CE certificate.
