IN-500 Portable Breathing Apparatus Medical Ambulance ICU Ventilator

FOB Reference Price:Get Latest Price
$100.00 - $5,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Brand Name:
ICEN
Model Number:
IN-500
Place of Origin:
Guangdong, China
Instrument classification:
Class I
Product name:
Ventilator
Certificate:
CE ISO 13485 and Rohs certificates
Warranty:
1 Year
Usage:
First-aid Appliance
I/E Ratio:
1:1.5~1:3.0
Respiration Frequency:
6~60 bpm
IMV Frequency:
1~12 times /Min
Maximum Minute ventilation:
≥18L / min
Pressure Limited::
1.0kPa~ 6.0kPa
Lung compliance:
≤30 mL / kPa
Type:
Breathing Apparatus
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
carton/wooden package for icu ventilator machine
Port
GUANGZHOU
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 To be negotiated

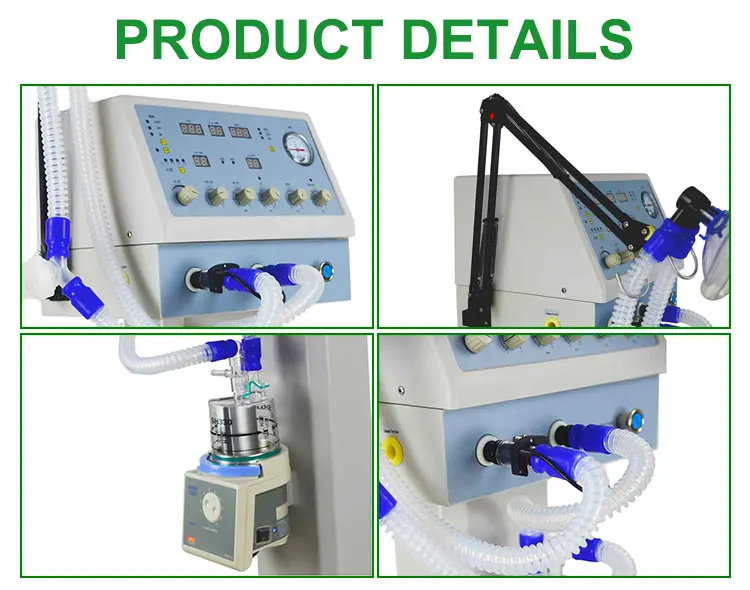

IN-500 Portable Breathing Apparatus Medical  Ambulance ICU Ventilator

Product Description



Physical specifications:

Display LED Display

Mode: pneumatically powered and electrically controlled system

Trolley: Fitted with 4 nos anti-static rubber castors; two of which are lockable for braking and easy maneuverability with foot operated brake provisions

Technical Specifications:

Gas requirement: Medical oxygen with a pressure ranging from 280~600kpa

safety valve <12.5  kPa

Respiratory Rate 6~60 times/ min

Oxygen concentration output <50%

minute volume ≥18L

modes of ventilation A/C, IPPV, SIPPV, IMV, SIMV, PEET. MANUAL

PEEP: 0.1 ~ 1.0 kPa

Ptr: -4 ~ 10 hPa

IMV frequency: 1~12 bpm

I/E Ratio: 1:1.5; 1:2.0; 1:2.5; 1:3.0

Tidal Volume 0-2000ml

Inspiratory Plateau: 0~1s

Sigh: one deep breath per 80 controlled respirations, the inspiration time is 1.5 times of the setting point

Power Supply Alarm "Ac/dc power supply are after failing to send out alarm immediately

Alarm Time: keep >120s"

The airway pressure continues to be higher than 15 hPa ±1 hPa for 15s±1s, then the machine will raise an audible alarm, the pressure will be displayed in red and the continuous high pressure red alarm wording is displayed on the screen of the anesthetic respirator.

Operating conditions

Ambient temperature: 10 ~ 40oC

Relative humidity: no higher than 80 %

Atmospheric pressure: 860 hPa ~ 1060 hPa

Power requirement: 100-240 Vac, 50/60 Hz;

Attention: the AC power supply used for the anesthesia machine must be well   grounded.

Attention: the anesthesia machine used must be equipped with a carbon dioxide monitor complying with ISO 9918:1993, an oxygen monitor complying with ISO 7767:1997 and an expiratory gas volume monitor complying with 51.101.4.2 of Medical Electrical Equipment Part II: Special Requirements for Safety and Basic Performance of Anesthesia System.

Storage

Ambient temperature: -15oC ~ +50oC

Relative humidity: no higher than 95 %

Atmospheric pressure: 86 kPa ~ 106 kPa.

It should be stored in a room without corrosive gas and well ventilated

Package

packaging box comply with the requirement of GB/T 15464

Between the packaging box and product, soft material with appropriate thickness provided to prevent loosening and mutual friction during transportation

Safty & Alarm

Gas source pressure Immediate alarm; “high level alarm” indicator flickers raising an audible alarm.

Airway Pressure Alarm The airway pressure exceeds 15hpa. The maximum delay is no longer than 17s. The “high level alarm” indicator flickers raising an audible alarm.

Tidal Volume Alarm Lower than 50ml, The alarm will be raised after one breathing cycle.

Ventilation Volume Alarm Lower: 0~12L/Min;   Up: 18L/ Min

Battery Voltage Alarm It alrms when the battery voltage is lower than 10.5V.

Company Information

Our company is a leading exporter and supply chain service provider of medical machine with more than 8 years' experience.
Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables. We have exported products to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.







Our Services
  • Top Quality: We have strict quality control system and enjoy good reputation in the market.
  • Excellent Service: We treat clients as friend and aim at building long term business relatiionship.
  • OEM Accepted : We Can print your own logo on the products.
  • Unbeatable Price: We always ensure high price performance to benefit our customers.
  • Timely Delivery: Your order shall be shipped once finished .
  • After-Sale Service:All Products Have One Year Warranty.
Packaging & Shipping

1. We ship the ventilator by air or sea for you.

2. Our ventilator with standard export packing.

3. No matter what delivery way , all depending on your actual requirements.

FAQ
  • How to buy your products ?Do you have distributor in our country?

You can buy the products from our company directly.Normally the procedure is:Sign the contact ,payment  byT/T, contact the shipping company to delivery the goods to your country.

  • What is the warranty?

The free warranty is one year from the day of Commissioning qualified.

  • Can we visit your country ?

Of course,we will prepare for everything in advance if it is necessary .Generally,it is require that customers must have build agency relationship or business relationship with our company.

  • How long is the validity of quotation?

Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .

  • Do you have the CE certificate ?

Yes, most of our products have the CE certificate.
