IN-H022 High Quality New Stress test 12 Channel Portable Electrocardiograph ECG Machine

FOB Reference Price:Get Latest Price
$100.00 - $1,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Visual Acuity Examination Apparatus
Brand Name:
ICEN
Place of Origin:
Guangdong, China
Model Number:
IN-H022
Instrument classification:
Class I
Product name:
12 channel ECG machine
Color:
White
Usage:
Medical Test
Application:
Home Hospital
Acquisition:
Simultaneous 12 leads
Sampling Rate:
1000Hz
Lead:
Standard 12 leads
Working Mode:
Manual/Auto
Frequency Response:
0.05 Hz~250Hz
keyword:
ecg electrodes machine
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
carton/wooden package for ecg electrodes machine
Port
guangzhou
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 To be negotiated

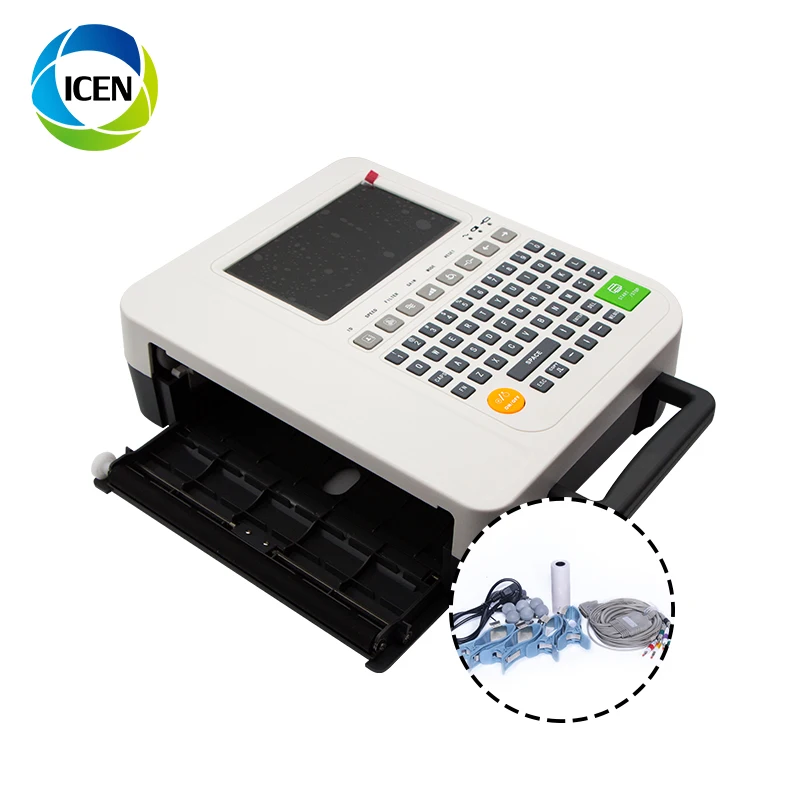

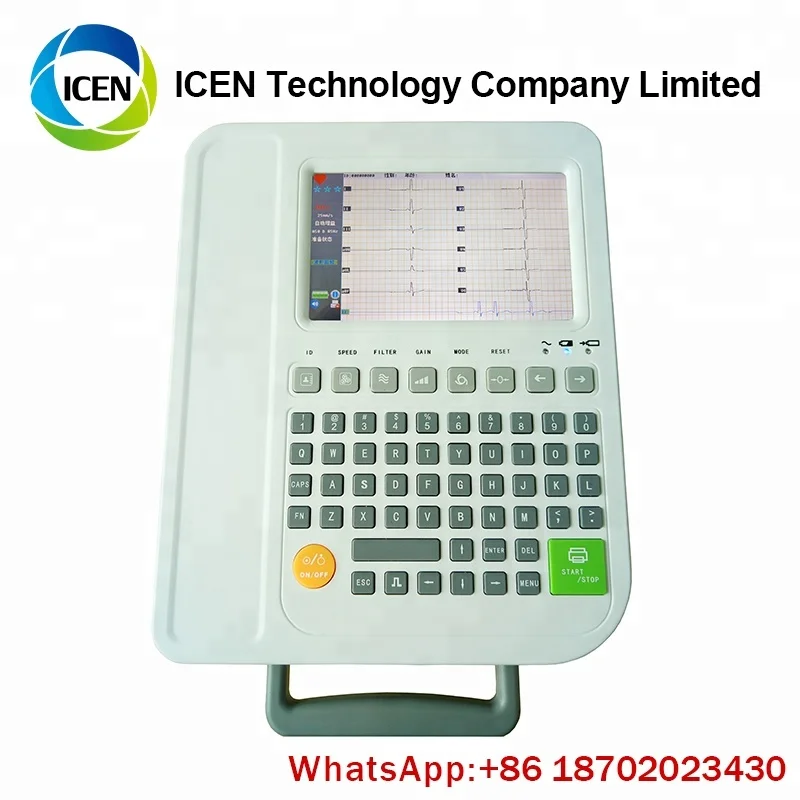

 IN-H022 High Quality New Stress test 12 Channel Portable Electrocardiograph ECG Machine

Product Description





















 Function :



 1.12 channel ECG machine with interpretation
 2.7" color TFT LCD display
 3.Simultaneous 12 leads acquisition and (Manual/Auto) recording with high   resolution thermal printer
 4.Manual/Auto working modes
 5.Use digital isolation technology and digital signal processing
 6.Baseline stabilization inspection
 7.Full alphanumeric silicon keyboard
 8.Support U disk storage
 9.Support USB function (Optional)





Technical Specifications:



Lead

Standard 12 leads

Acquisition

Simultaneous 12 leads

A/D Converter

14 bit

Sampling Rate

1000Hz

Working Mode

Manual/Auto

Interference Filter

AC Filter and EMG Filter

CMMR

≥100dB (with AC filter)

Input Circuit Floating, protection

circuit against defibrillator effect

Input Circuit Current

≤0.1μA

Input Impedance

≥50MΩ

Patient Current Leakage

<10μA

Calibrating Voltage

1mV±2%

Polarization Voltage Tolerance

≥±500mV

Time Constant

≥3.2s

Frequency Response

0.05Hz~250Hz

Noise Level

<15μVp-p

Sensitivity Threshold

≤20μV

Printer

 Thermal printer

Paper

215mm×20m, roll

Page Speed



6.25, 12.5, 25,50mm/s(±3%)

Sensitivity



10mm/mV (AUTO), 2.5, 5, 10, 20mm/mV



Safe Class



GB9706.1, Class I, Type CF



Power Supply



AC 220V (±10%), 50Hz±1Hz, Power≤60VA



AC85~265V, 50/60Hz



DC14.8V (2200mAh), rechargeable Li-ion battery

 Sensitivity Printer 10mm/mV (AUTO), 2.5, 5, 10, 20mm/mV  CPU  32 bits
 Dimension

310mm×220mm×89mm

 Weight

2kg (with battery)





Company Information

Our company is a leading exporter and supply chain service provider of medical machine with more than 8 years' experience.
Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables. We have exported products to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.





Our Services
  • Top Quality: We have strict quality control system and enjoy good reputation in the market.
  • Excellent Service: We treat clients as friend and aim at building long term business relatiionship.
  • OEM Accepted : We Can print your own logo on the products.
  • Unbeatable Price: We always ensure high price performance to benefit our customers.
  • Timely Delivery: Your order shall be shipped once finished .
  • After-Sale Service:All Products Have One Year Warranty.
Packaging & Shipping

1. We ship the ecg electrodes machine by air or sea for you.

2. Our ecg electrodes machine with standard export packing.

3. No matter what delivery way , all depending on your actual requirements.





Our Customer







FAQ
  • How to buy your products ?Do you have distributor in our country?

You can buy the products from our company directly.Normally the procedure is:Sign the contact ,payment  byT/T, contact the shipping company to delivery the goods to your country.

  • What is the warranty?

The free warranty is one year from the day of Commissioning qualified.

  • Can we visit your country ?

Of course,we will prepare for everything in advance if it is necessary .Generally,it is require that customers must have build agency relationship or business relationship with our company.

  • How long is the validity of quotation?

Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .

  • Do you have the CE certificate ?

Yes, most of our products have the CE certificate.
