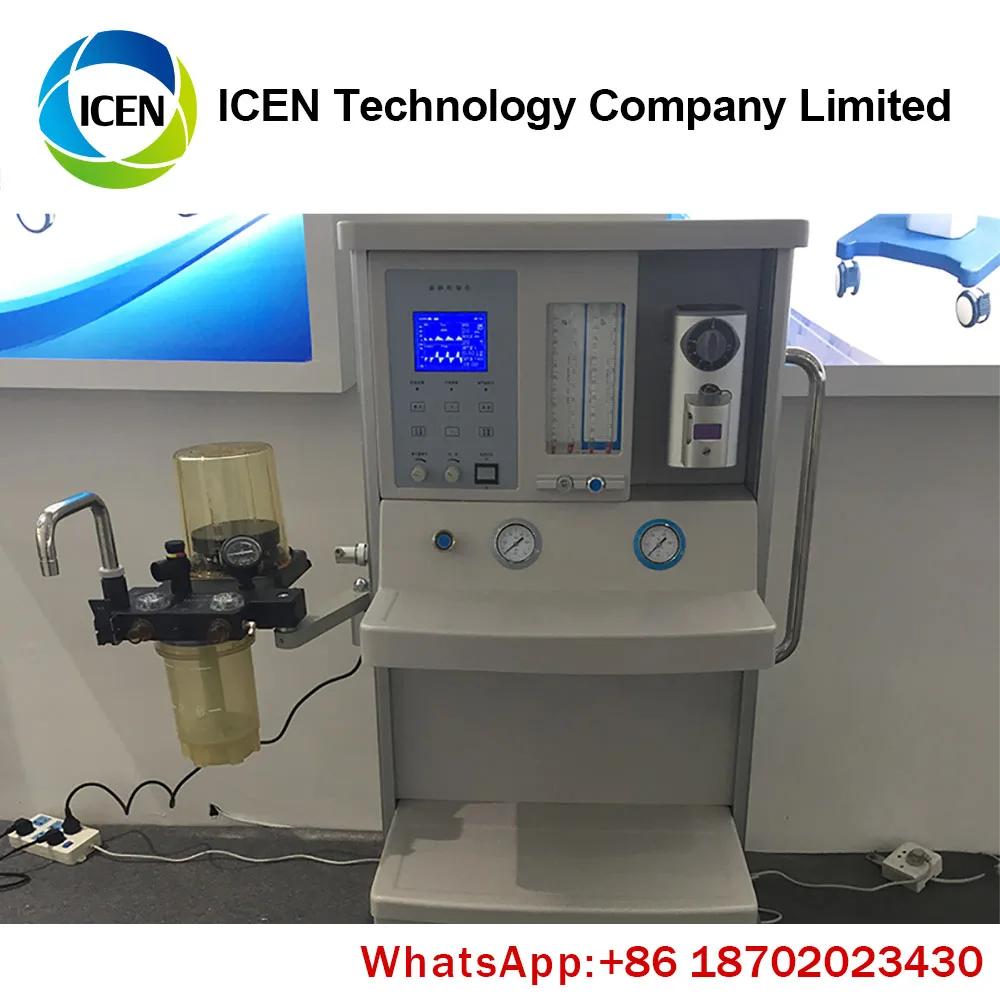

IN-01B First Aid Medical Equipment ICU Anesthesia Equipment with Ventilator

FOB Reference Price:Get Latest Price
$100.00 - $5,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Anesthesia Equipments & Accessories
Brand Name:
ICEN
Model Number:
IN-01B
Place of Origin:
Guangdong, China
Instrument classification:
Class I
Screen:
LED Display Screen
Product name:
ICU Anesthesia
Certificate:
CE ISO
Warranty:
1 Year
Suitable:
Adult & Child
Pressure trigger:
-10-10 cmH2O (electronically controlled)
Pressure range:
5-60 hPa
Tidal volume:
Adjustable range: 50-1500 ml, Display range: 0-2000 ml
Fresh-gas flow:
0-10 Umin
02 flush:
25-75 Umin
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
carton/wooden package for icu ventilator machine
Port
GUANGZHOU
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 To be negotiated

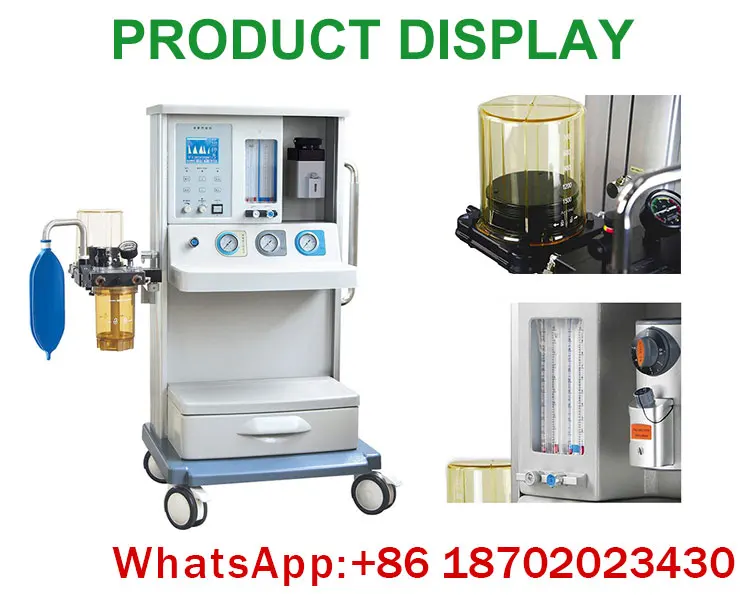

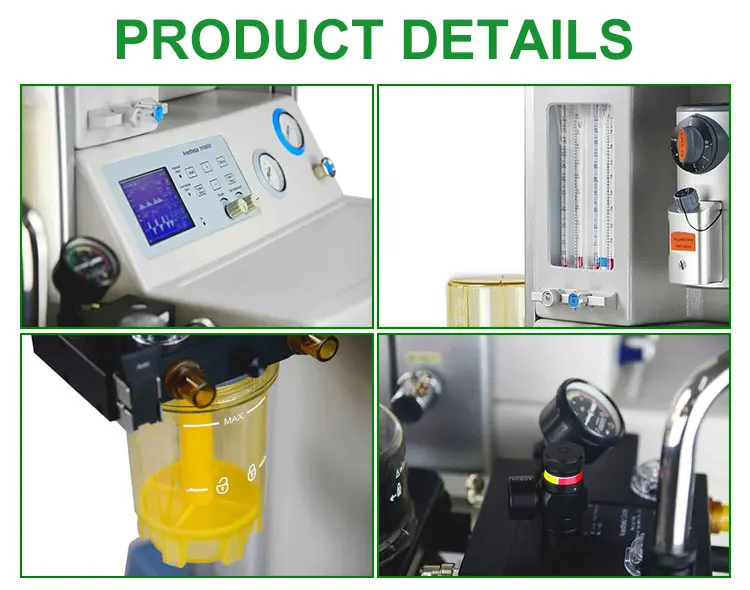

IN-01B First Aid Medical Equipment  ICU Anesthesia Equipment with  Ventilatorr

Product Description



General Specifications
Dimensions (H x W x D): 132 cm x 100 cm x 65 cm
Weight :91 kg (with 1 PA-I vaporizer attached)
Power :220-240 V, 50-60 Hz (well grounded)
Backup power :At least 30 minutes, nominally between 2 to 4 hours
Display :5.4 inch TFT display


Ventilator
Drive method : Pneumatically driven & electronically controlled, closed, semi-closed and
semi-open
Tidal volume Adjustable range: 50-1500 ml, Display range: 0-2000 ml
Respiratory rate :1-99 bpm
Operating modes: Manual, Standby, Intermittent Positive Pressure Ventilation (IPPV),
Synchronized Intermittent Positive Pressure Ventilation (SIPPV),Intermittent Mandatory Ventilation (IMV), Synchronized Intermittent,Mandatory Ventilation (SIMV)
Pressure range :5-60 hPa
Pressure trigger:  -10-10 cmH2O (electronically controlled)
SIMV Rate : 1-20 bpm
Inspiration/Expiration ratio (l:E) :4:1-1:10 (capable of inverse ratio ventilation)
Sigh function: 1 sigh breath in every 80-160 breaths
Gas System
Flowmeter 02: 0.1-10 Umin, N2O: 0.1-10 Umin
Fresh-gas flow : 0-10 Umin
Gas supply :02, N2O: 0.32-0.6 Mpa
02 flush: 25-75 Umin
Anesthesia Gas Scavenging System (AGSS) Optional
Other Specifications
Monitoring :Monitorable parameters: Minute Volume (MV), Tidal Volume (VT),breathing frequency, peak pressure, spontaneous inspiration rate,airway resistance, lung compliance & power supply
Alarm :Audible and/or visual alarms for tidal volume, airway pressure, power
failure, oxygen failure & more, also features a alarm query function

Vaporizers :1 PA series (Selectatec® compatible) vaporizer mount
Vaporizer concentration: 0-5%
Absorber volume: 1.5 L



Company Information

Our company is a leading exporter and supply chain service provider of medical machine with more than 8 years' experience.
Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables. We have exported products to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.







Our Services
  • Top Quality: We have strict quality control system and enjoy good reputation in the market.
  • Excellent Service: We treat clients as friend and aim at building long term business relatiionship.
  • OEM Accepted : We Can print your own logo on the products.
  • Unbeatable Price: We always ensure high price performance to benefit our customers.
  • Timely Delivery: Your order shall be shipped once finished .
  • After-Sale Service:All Products Have One Year Warranty.
Packaging & Shipping

1. We ship the Anesthesia by air or sea for you.

2. Our Anesthesia with standard export packing.

3. No matter what delivery way , all depending on your actual requirements.

FAQ
  • How to buy your products ?Do you have distributor in our country?

You can buy the products from our company directly.Normally the procedure is:Sign the contact ,payment  byT/T, contact the shipping company to delivery the goods to your country.

  • What is the warranty?

The free warranty is one year from the day of Commissioning qualified.

  • Can we visit your country ?

Of course,we will prepare for everything in advance if it is necessary .Generally,it is require that customers must have build agency relationship or business relationship with our company.

  • How long is the validity of quotation?

Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .

  • Do you have the CE certificate ?

Yes, most of our products have the CE certificate.
