IN-G072 Medical Electric Automatic Portable Double Channel Syringe Pump

FOB Reference Price:Get Latest Price
$100.00 - $600.00 / Piece | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong
Brand Name:
ICEN
Model Number:
IN-G072
Warranty:
1 year, 1year
After-sale Service:
Return and Replacement
Instrument classification:
Class I
LCD display:
Display settings, accumulation etc
Drug Library:
Available
Working Temperature:
5-40℃
Occlusion Sensitivity:
High, Medium, low
Anti-Bolus:
Automatic
Power Supply, AC:
110/230V (optional), 50-60 Hz, 20VA
Type:
Examination therapy equipments
Supply Ability
Supply Ability:
200 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton or wooden cases for Syringe Pump
Port
guangzhou
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Video Description

IN-G072 Medical Electric Automatic Portable Double Channel Syringe PumpIN-G7022

Product Description

Dual-Channel Infusion Syringe Pump with CE IN-G702

Features:
      1. Compact in design, dual channel operation independently or simultaneously.

2. Simple and easy to use

3. Low running noise.

4. 3 infusion modes.

5. Over 20 Syringe brands are built-in.

6. 2 syringe brands can be calibrated.

7. Anti-bolus function.

8. Audio-visual alarms for added safety.

9. Display critical clinical data simultaneously.

10. The pump enters KEEP VEIN OPEN (KVO) mode automatically once injection of VTBI is finished.

11. The flow rate can be set in 0.1mL/h increments.

12. 2 ways to input data: by keyboard or SHUTTLE key.IN-G7021

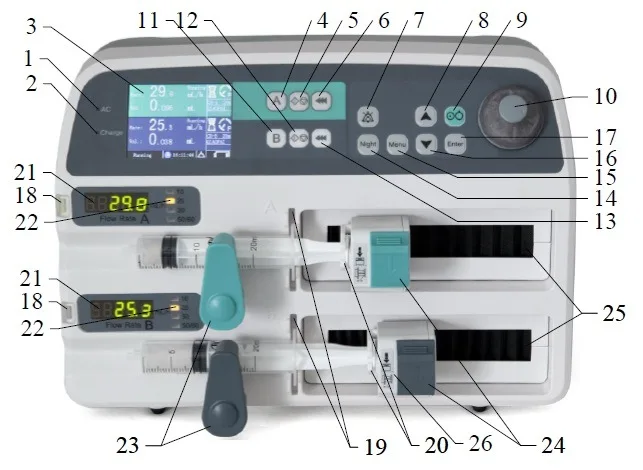

1, AC LED: Pump powered by alternate current.
2, CHARGE LED: Flicking indicates battery under charging.
3, LCDDISPLAY: Display settings, accumulation etc.
4, [A] KEY: Switch to channel A operation.
5, [START/STOP] KEY for channel A operation: Start or stop injection.
6, [PURGE] KEY for channel A operation: Press to fill liquid in extension line, bolus control during injection.

7, [MUTE]KEY: Suspend alarm sound.
8, [INCR]KEY: Increment.
9, [ON/OFF]KEY: Turn on /Turn off the pump.
10,[SHUTTLE]KEY: Rotate it to change data or selection of menu items. Click to confirm selection.
11,[B]KEY: Switch to channel B operation.
12,[START/STOP] KEY for channel B operation: Start or stop injection.
13,[PURGE] KEY for channel B operation: Press to fill liquid in extension line, bolus control during injection.
14,[NIGHT] KEY: Change to night running display.
15,[MENU]KEY: Press to enter menu.
16,[DECR]KEY: Decrement.
17,[ENTER]KEY: Confirm to choose the menu item or confirm input data.
18,ALARM&WORKING LED: Alternate flicking in green means running. Flicking in red means alarm.
19,SYRINGE INSTALLATIONSLOT: Install syringe finger grips.
20,PLUNGER HOOK
21,FLOW RATE INDICATOR
22,SYRINGE SIZE INDICATOR
23,SYRINGEIDENTIFICATION HOLDER: Fasten syringe and identification of syringe size.
24,SYRINGE PUSHER STOPPER: Push down syringe pusher stopper, glide right syringe pusher.
25,WATERPROOF CLOTH: Prevent the liquid from splashing into the pump.
26,PRESSURE SENSORIN-G7022

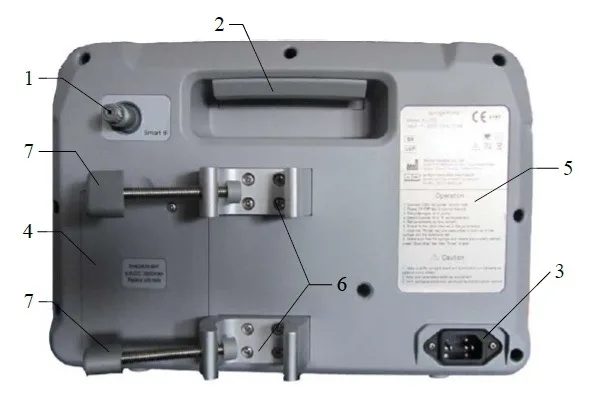

1. NURSE CALL: Connect to Nurse Call System (optional function).
2. PUMP HANDLE: Use this handle to move the pump.
3. AC POWERINLET
4. BATTERY COVER: Cross screw driver needed to open it.
5. MODEL TAG
6. POLE CLAMP
7. POLE CLAMP BOLTIN-G702IN-G7026IN-G702)4

Company Information

Our Company.jpg

Our company is a leading exporter and supply chain service provider of medical machine with more than 8 years' experience.
Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables. We have exported products to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.

.jpg





Packaging & Shipping

1. We ship the Syringe Pump by air or sea for you.

2. Our Syringe Pump with standard export packing.

3. No matter what delivery way , all depending on your actual requirements.

Our Services
  • Top Quality: We have strict quality control system and enjoy good reputation in the market.
  • Excellent Service: We treat clients as friend and aim at building long term business relatiionship.
  • OEM Accepted : We Can print your own logo on the products.
  • Unbeatable Price: We always ensure high price performance to benefit our customers.
  • Timely Delivery: Your order shall be shipped once finished .
  • After-Sale Service:All Products Have One Year Warranty.
FAQ
  • How to buy your products ?Do you have distributor in our country?

    You can buy the products from our company directly.Normally the procedure is:Sign the contact ,payment  byT/T, contact the shipping company to delivery the goods to your country.

  • What is the warranty?

    The free warranty is one year from the day of Commissioning qualified.

  • Can we visit your country ?

    Of course,we will prepare for everything in advance if it is necessary .Generally,it is require that customers must have build agency relationship or business relationship with our company.
  • How long is the validity of quotation?

    Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .
  • Do you have the CE certificate ?

    Yes, most of our products have the CE certificate.
